Introduction to Vacuum Measurement in Analytical Instruments
Accurate vacuum measurement forms the backbone of modern analytical instruments, ensuring ions travel collision-free paths and detectors capture reliable signals. In mass spectrometry and GC-MS systems, even minor pressure deviations can compromise resolution, sensitivity, and data integrity. Engineers and procurement specialists in analytical labs increasingly seek compact, cost-effective, and customizable solutions that integrate seamlessly into OEM systems.
At Poseidon Scientific, our VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge address these needs directly. Designed for low-cost, small-footprint applications with full protocol customization, these transmitters deliver the performance required for front-stage roughing and high-vacuum analyzer monitoring. This guide explores vacuum measurement across key analytical platforms, required pressure ranges, and practical gauge selection criteria.
Mass Spectrometry: Principles and Vacuum Demands
Mass spectrometers separate ions by mass-to-charge ratio in electrostatic or magnetic fields. For ions to reach the detector without scattering, neutralization, or unwanted fragmentation, the mean free path must exceed the instrument’s flight path—typically several centimeters to meters. This demands high vacuum conditions where molecular density drops dramatically.
In practice, mass spectrometers operate in two distinct vacuum regimes. The ion source and inlet region may tolerate slightly higher pressures during sample introduction, while the analyzer and detector sections require ultra-low pressures to maintain spectral quality. Typical analyzer pressures range from 10-4 to 10-7 Torr, depending on instrument geometry and ionization method (e.g., EI, ESI, or MALDI).
Without proper vacuum, ion-molecule collisions increase background noise and reduce sensitivity. Modern quadrupole, time-of-flight, and Orbitrap systems all incorporate multi-stage pumping—mechanical roughing followed by turbomolecular or diffusion pumps—to achieve and maintain these levels. Real-time pressure monitoring at both stages prevents pump overload, protects filaments or detectors, and triggers interlocks during venting or maintenance.

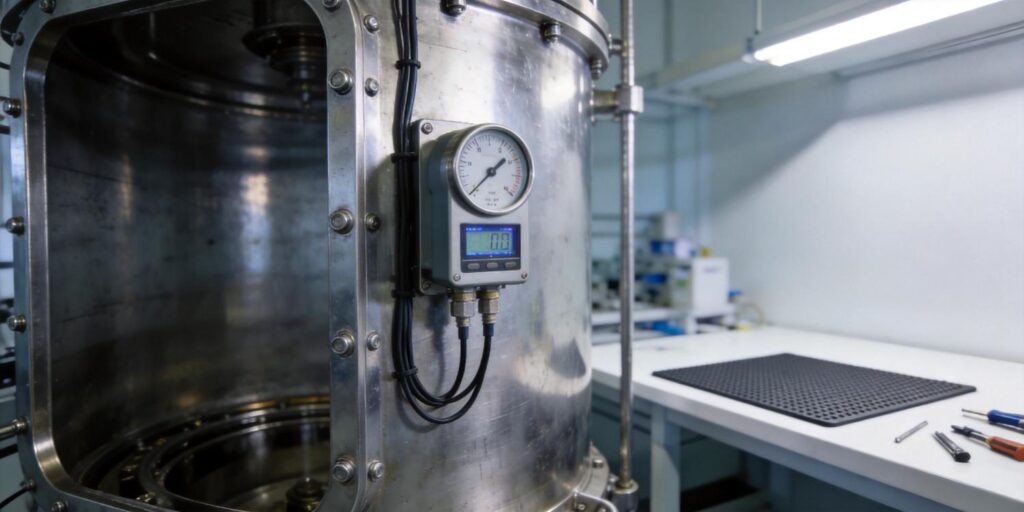

Our VG-SM225 Cold Cathode Vacuum Gauge excels here for high-vacuum monitoring. Its Penning discharge principle provides stable readings down to 10-7 Torr without a hot filament, eliminating outgassing risks common in analytical environments. The compact design (smaller than many legacy models) fits tight OEM layouts common in benchtop mass spectrometers.
Why Vacuum Stability Matters in Everyday MS Operation
Drift in analyzer pressure can shift peak positions, broaden mass peaks, or suppress low-abundance ions. Continuous monitoring with a calibrated gauge ensures consistent mean free paths and supports automated bake-out or shutdown sequences. In high-throughput labs processing hundreds of samples daily, this reliability directly impacts uptime and operating costs.
GC-MS Systems: Integrated Vacuum Challenges
Gas chromatography-mass spectrometry combines chromatographic separation with mass analysis, introducing additional vacuum considerations. Carrier gas (typically helium or hydrogen) flows continuously into the mass spectrometer via a capillary column or open-split interface. The ion source operates at intermediate pressures, while the quadrupole or TOF analyzer requires high vacuum—often 10-5 to 10-6 Torr—to preserve resolution.
GC-MS systems typically use a two-stage vacuum setup: a roughing pump maintains foreline pressure below 1 Torr, and a turbomolecular pump handles the analyzer. Pressure excursions during column changes, solvent injections, or carrier gas fluctuations can flood the system, contaminating detectors or triggering protective shutdowns. Effective monitoring at both the foreline (rough vacuum) and analyzer (high vacuum) is essential for safe, repeatable operation.
Here, the combination of our VG-SP205 Pirani for foreline monitoring and VG-SM225 Cold Cathode for analyzer pressure proves ideal. The Pirani’s wide range (atmosphere to 10-3 Torr) tracks pump-down and backing pressure with fast response, while the Cold Cathode provides precise high-vacuum data without filament burnout risks from reactive carrier gases or residual solvents.
Common GC-MS Vacuum Failure Modes and Prevention
Foreline pressure spikes from column overload or pump oil backstreaming can damage turbomolecular pumps. Analyzer pressure creep from leaks or outgassing reduces sensitivity. Dual-gauge monitoring with RS232 digital output allows direct integration into instrument control software for real-time alarms and data logging—features standard on both Poseidon models.
Required Vacuum Ranges in Analytical Instruments
Understanding pressure regimes guides proper gauge placement and selection. The following table summarizes typical requirements:
| Instrument Section | Typical Pressure Range (Torr) | Primary Function | Recommended Poseidon Gauge |
|---|---|---|---|
| Foreline / Backing Pump | Atmosphere to 10-3 | Roughing, pump-down monitoring, interlocks | VG-SP205 Pirani Vacuum Transmitter |
| Ion Source (GC-MS interface) | 10-4 to 10-3 | Sample ionization zone | VG-SP205 (transition monitoring) |
| Analyzer / Detector | 10-3 to 10-7 | Ion separation and detection | VG-SM225 Cold Cathode Vacuum Gauge |
| High-Resolution Systems (e.g., Orbitrap) | <10-7 | Extended mean free path | VG-SM225 (with software averaging) |
These ranges align with industry standards for quadrupole, TOF, and hybrid systems. Note that exact targets vary by manufacturer; Poseidon gauges support full-range analog (0–10 V) and customizable digital protocols for direct PLC or instrument integration.
Gauge Selection: Matching Technology to Application Needs
Selecting the right vacuum gauge balances measurement range, robustness, size, cost, and integration flexibility. Traditional hot-cathode ionization gauges dominate some high-precision setups but introduce filament outgassing and burnout risks—particularly problematic in GC-MS with solvent-rich samples. Cold-cathode and thermal conductivity gauges offer compelling alternatives for routine analytical work.
The VG-SP205 Pirani Vacuum Transmitter uses thermal conductivity to measure from atmosphere to 10-3 Torr. Its platinum filament provides excellent stability and contamination resistance compared with tungsten alternatives. Temperature compensation circuitry minimizes drift, making it ideal for foreline monitoring where rapid response to pump-down cycles is critical. Maintenance-free operation and a 3–5 year lifetime in clean environments reduce total ownership costs.
For high vacuum, the VG-SM225 Cold Cathode Vacuum Gauge employs a traditional Penning discharge with positive magnetron geometry. Operating at 2 kV with a ~100 G field, it delivers linear response from 10-3 to 10-7 Torr. Key advantages include:
- No hot filament—eliminating outgassing and burnout in reactive environments
- Fully removable sensor head for simple cleaning with 500-mesh sandpaper
- Compact footprint suitable for small-benchtop instruments
- Custom RS232 protocol support (5–10 units minimum) for seamless OEM integration
- Built-in high-voltage protection and status indicators
Compared with legacy cold-cathode designs, the VG-SM225 offers superior consistency through tight tolerance control and factory calibration against certified standards. Its cost structure—typically 40–60% below imported equivalents—enables instrument manufacturers to maintain competitive pricing without sacrificing performance.
Practical Selection Criteria for Engineers
When evaluating gauges, consider:
- Range overlap: Use Pirani for roughing and Cold Cathode for crossover at ~10-3 Torr
- Gas composition: Both Poseidon models are calibrated for air/N₂; application-specific corrections available on request
- Communication: Standard 0–10 V analog plus RS232; RS485 available with minor board revision
- Environmental tolerance: 15–50 °C operation with active compensation
- Maintenance: Pirani is fully sealed and maintenance-free; Cold Cathode supports field cleaning without breaking vacuum integrity

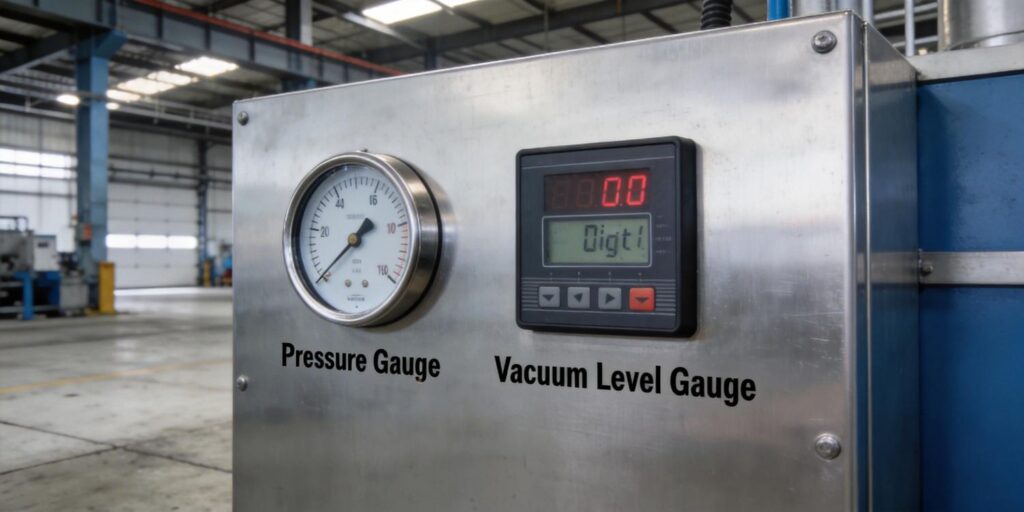

For combination monitoring, many customers pair both gauges on a single system using our RJ45 interfaces—providing complete coverage from atmosphere to high vacuum in one integrated solution.
Call to Action: Elevate Your Analytical Instrument Performance
Whether you are designing next-generation mass spectrometers, optimizing GC-MS workflows, or upgrading existing vacuum monitoring, Poseidon Scientific delivers reliable, cost-effective solutions tailored to your exact requirements. Our VG-SP205 and VG-SM225 gauges combine proven physics with modern digital flexibility and small-footprint engineering—validated in real-world scientific instruments.
Explore the VG-SP205 Pirani Vacuum Transmitter for rough vacuum applications or discover the VG-SM225 Cold Cathode Vacuum Gauge for high-vacuum precision.
Need a custom communication protocol, special flange, or multi-gauge system quote? Our engineering team supports low-volume customization starting at just 5–10 units. Contact us today to discuss your vacuum measurement challenges—we respond within 24 hours and typically ship evaluation units in under two weeks.
Accurate vacuum measurement is not an afterthought—it’s the foundation of analytical excellence. Partner with Poseidon Scientific to keep your instruments performing at their peak.
