EMI Sources in Factories
High-EMI environments are the norm in modern vacuum-dependent manufacturing. Plasma power supplies operating at 13.56 MHz in sputtering or PECVD tools generate strong RF fields. Variable-frequency drives on turbo pumps and roughing pumps produce switching transients. Arc-welders, induction heaters, and nearby CNC machines add broadband noise. In semiconductor cluster tools or battery dry-room lines, these sources can induce voltage spikes exceeding 10 V/m on unshielded cabling.
For vacuum gauges, EMI manifests as erratic 0–10 V analog readings, corrupted RS232 packets, or false over-range alarms. The VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge are designed with robust onboard filtering, yet real-world factory noise still demands additional isolation and shielding practices. Poseidon’s RJ45 interface and customizable RS232 protocol simplify integration, but proper electrical isolation remains essential for maintaining <±5 % accuracy across the 15 °C–50 °C operating range.
Isolation Amplifier Role
An isolation amplifier breaks the direct electrical connection between the gauge output and the PLC or SCADA input, eliminating conducted noise while preserving the 0–10 V signal (useful range 2–8 V). Galvanic isolation ratings of 1500–2500 V RMS are standard and sufficient for most industrial vacuum systems.
In practice, insert a loop-powered or DC-powered isolation module (e.g., 4–20 mA output models with built-in converters) immediately after the gauge. The VG-SP205 and VG-SM225 do not natively support 4–20 mA, but their clean analog output pairs perfectly with off-the-shelf isolators. This approach blocks RF pickup from plasma generators and prevents ground-potential differences from shifting the zero point. Digital RS232 lines benefit from opto-isolated converters when cable runs exceed 30 m, converting to fiber or isolated RS485 for multi-chamber cluster tools.
Poseidon’s built-in status bits (transmitted via RS232) further complement isolation: contamination or over-range flags are immune to analog noise, allowing the PLC to ignore transient EMI spikes while the isolation amplifier handles the primary pressure signal. Field data from PVD coating lines show that adding isolation reduces false alarms by >70 % and extends effective gauge MTBF in high-EMI environments.
Ground Loop Prevention
Ground loops form when the gauge body (tied to chamber potential) and the PLC ground reference sit at different potentials—often 0.5–2 V apart in large facilities with multiple power distribution panels. This offset appears as a steady zero shift or low-frequency drift on the analog output.
Prevention starts at installation: ground the gauge housing and cable shield at one point only—preferably the chamber flange. Use a single-point star ground for all vacuum instrumentation rather than daisy-chaining to the PLC cabinet. Poseidon transmitters ship with clear grounding diagrams in their user manuals; the RJ45 pinout reserves dedicated shield and ground pins for exactly this purpose.
For the VG-SM225 Cold Cathode, whose NdFeB magnets and high-voltage circuitry add minor leakage paths, a floating power supply or isolated DC-DC converter for the electronics section eliminates the last conductive path. The result is a stable baseline that remains within ±2 % of factory calibration even when plasma ignition or pump VFDs cycle nearby.

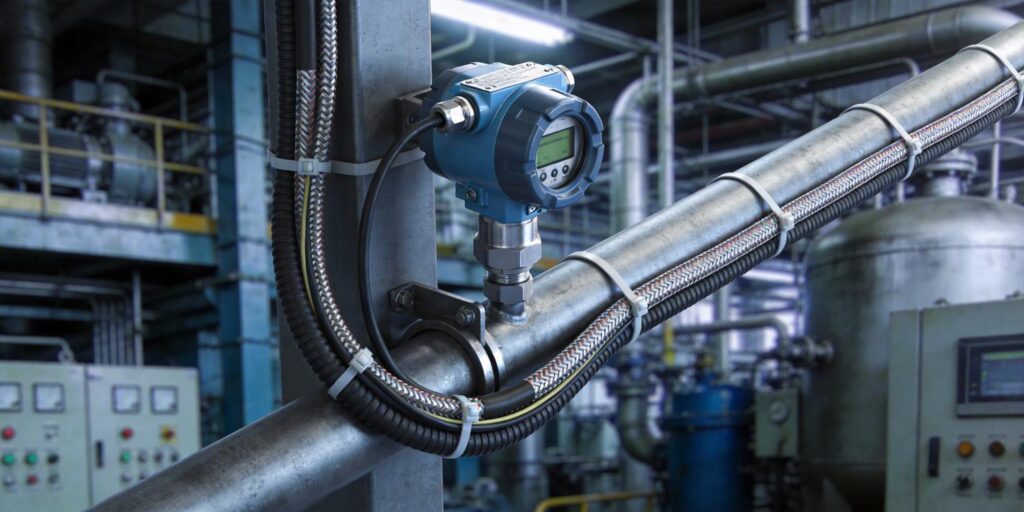

Shielded Cable Routing
Cable routing is the first line of defense and the least expensive. Route gauge cables in dedicated metal conduit or armored trays, maintaining at least 30 cm separation from power lines, RF coax, and motor cables. Cross power lines at 90° angles when unavoidable. Use twisted-pair shielded cable (24 AWG minimum) for the analog 0–10 V signal and foil-plus-braid shielded twisted pair for RS232.
Terminate the shield at the gauge end only (RJ45 connector shield pin) and leave the PLC end floating or connected through a 0.1 µF capacitor to avoid new ground loops. Poseidon’s compact RJ45 interface accepts standard industrial Ethernet-style shielded patch cords, simplifying routing through cleanroom penetrations while maintaining positive-pressure integrity. For runs >50 m, switch to isolated RS485 converters using the same shielded cable—Poseidon’s customizable protocol supports this with zero firmware changes.
These practices keep EMI-induced noise below 10 mV on the analog output and packet error rates under 0.01 % on RS232, even in plasma-heavy sputtering bays or electron-beam lithography cleanrooms.
Signal Integrity Validation
After installation, validate signal integrity with a repeatable test sequence before commissioning:
- Power the system with all plasma sources and pumps off; record 30-minute baseline stability at atmosphere and at 10⁻⁴ Torr. Acceptable drift: <±5 % or <10 mV on analog.
- Activate the nearest EMI source (plasma generator, VFD) at full power while monitoring both analog voltage and RS232 values simultaneously. Any discrepancy >0.2 V or repeated status-bit errors indicates insufficient isolation or shielding.
- Perform a valve-isolation test: close the chamber isolation valve and watch for noise-induced false pressure rise. The VG-SM225’s software protection and the VG-SP205’s thermal compensation should keep readings rock-solid.
- Log RS232 status bits for EMI-related events (over-range spikes, communication retries). If errors exceed 1 per hour, add an opto-isolator or reroute cable.
Poseidon’s NIST-traceable calibration certificate and factory-supplied verification procedure make this validation fast—typically <15 minutes per gauge. Digital RS232 output eliminates scaling errors common with analog-only systems, providing engineers with a second, independent verification path that is inherently more immune to EMI.
Conclusion and Next Steps
Electrical isolation in high-EMI factory environments is not optional—it is the difference between stable vacuum data and constant false alarms. By combining isolation amplifiers, single-point grounding, shielded routing, and signal-integrity validation, the VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge deliver reliable 0–10 V analog and customizable RS232 performance even in plasma-heavy sputtering, PECVD, and electron-beam systems. Their compact design, temperature compensation, and contamination-tolerant construction further ensure long-term signal integrity without the frequent recalibration or filament replacement required by legacy gauges.
Engineers and procurement teams gain confidence that every pressure reading reflects true chamber conditions, not factory noise. Low engineered cost, any-orientation mounting, and protocol customization from just 5–10 units make full EMI-hardened installations practical for both OEM cluster tools and retrofit projects.
Ready to eliminate EMI-induced vacuum measurement errors in your high-noise environment? Explore the VG-SP205 Pirani Vacuum Transmitter for robust mid-vacuum monitoring or the VG-SM225 Cold Cathode Vacuum Gauge for high-vacuum performance today. Both support plug-and-play 0–10 V analog, RS232 with status monitoring, and detailed EMI-shielding guidance in their user manuals.
Contact our applications engineering team for a free EMI-audit checklist, isolation-amplifier recommendation matrix, or side-by-side signal-integrity comparison with your current gauges. We’re here to help you achieve clean, stable vacuum readings—every cycle, even in the noisiest factory.
