Creating Maintenance Intervals for Vacuum Gauges in OEM Service Programs
Effective maintenance planning begins with application-specific intervals that balance reliability, uptime, and cost. For Poseidon Scientific’s VG-SP205 Pirani Vacuum Transmitter, the platinum-filament design operates essentially maintenance-free in typical industrial environments. In clean vacuum systems such as mass spectrometers or scanning electron microscopes, the expected service life is 3–5 years, limited primarily by gradual filament aging rather than contamination. In food packaging or light industrial lines where occasional particulates or humidity are present, the same 3–5 year interval still applies because the sealed construction and temperature-compensated electronics minimize drift.
The VG-SM225 Cold Cathode Vacuum Gauge follows a more environment-dependent schedule. In clean, high-vacuum applications (e.g., scientific instrumentation), the positive-magnetron Penning discharge cell maintains stable operation for 3–5 years. In moderately contaminated environments—such as vacuum heat-treatment furnaces or coating chambers—electrode carbon buildup or oxidation can reduce performance within 1–2 years. Service teams should therefore establish two tiers: annual visual status checks (via built-in indicator LEDs) and full electrode inspection every 12–24 months or after 5,000 operating hours, whichever comes first.
Recommended practice is to tie intervals to actual usage data logged through the gauges’ RS232 interface. By tracking cumulative hours above 10⁻³ Torr or discharge current trends, OEM service teams can shift from calendar-based to condition-based maintenance, reducing unnecessary interventions while protecting customer yield.
Spare Parts Inventory Planning for Field Service Efficiency
Smart inventory planning minimizes downtime and inventory carrying costs. The VG-SP205 Pirani requires no routine spare parts; its maintenance-free architecture means the only recommended stocked item is a complete transmitter assembly. OEMs typically keep 5–10% of installed base on the shelf for immediate swap-out, rotating stock on a first-in-first-out basis to ensure freshness.
For the VG-SM225 Cold Cathode, the detachable sensor head design simplifies spares strategy. Stock the following minimum kit per 20 installed units:
- One complete replacement sensor head (pre-calibrated at factory)
- Replacement KF16/KF25 flange seals (Viton or Kalrez, depending on process chemistry)
- 500-mesh and 200-mesh abrasive sheets for on-site electrode cleaning
- Insulating spacer set (PEEK) and O-ring kit
This modular approach allows technicians to clean electrodes in the field rather than return the entire gauge, cutting replacement cost by more than 60% compared with disposable cold-cathode designs from other suppliers. Poseidon Scientific’s 3-person engineering team can also supply custom spare kits tailored to specific OEM production volumes as low as 5–10 units.
Calibration Scheduling and Traceability Best Practices
Both Poseidon gauges ship with individual factory calibration certificates traceable to NIST standards. The VG-SP205 Pirani establishes its voltage-to-pressure curve across the full atmospheric-to-10⁻³ Torr range; the VG-SM225 Cold Cathode is calibrated in the 10⁻³ to 10⁻⁷ Torr band using a reference ionization gauge. Because Pirani sensors cannot be field-calibrated by end users, OEM service teams should schedule verification every 12–18 months using a portable transfer standard at three key points (atmosphere, 1 Torr, and 10⁻² Torr).
Cold-cathode gauges benefit from post-cleaning verification. After electrode polishing to restore metallic luster, a quick two-point check at 10⁻⁴ Torr and 10⁻⁶ Torr confirms curve stability. Poseidon provides a simple spreadsheet template that logs before-and-after readings, enabling service teams to maintain ISO 9001 or IATF 16949 compliance with minimal paperwork. For high-volume OEMs, we offer annual factory recalibration service with 48-hour turnaround and updated certificates.

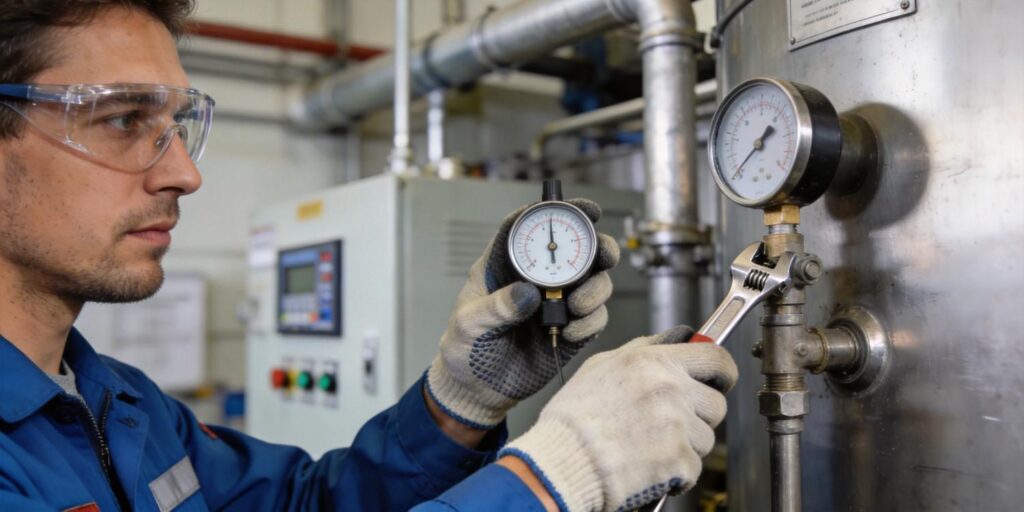

Field Replacement Workflow: Step-by-Step for Minimal Downtime
A standardized replacement workflow ensures safety and repeatability. For either gauge:
- Power down the system and confirm high-voltage interlock has discharged (VG-SM225 only).
- Isolate the gauge with the process valve or KF blanking plate.
- Remove the four M4 mounting screws and gently withdraw the transmitter body.
- For VG-SM225: detach the sensor head by loosening the two captive screws; clean or swap the head as needed.
- Install the new or cleaned assembly, torquing flange bolts to 2 Nm for leak-tightness (<10⁻¹¹ Pa·m³/s).
- Reconnect RJ45 or DB9 cable and power up; the gauge performs an automatic self-test (status LED sequence confirms readiness).
- Log the replacement via RS232 and verify pressure reading against the system reference within ±10%.
The entire procedure takes under 15 minutes for trained technicians, allowing production lines to resume within a single shift. Poseidon supplies illustrated quick-start cards and video guides with every OEM shipment.
Customer Documentation and Training Materials
Clear documentation reduces support calls and builds customer confidence. Every gauge ships with:
- Digital user manual (PDF) covering safety, installation, and troubleshooting
- Factory calibration certificate with unique serial number
- Maintenance interval recommendation sheet customized to the OEM’s typical process
- Status code reference card (including filament-open alert for Pirani and high-voltage shutdown for Cold Cathode)
OEM service teams are encouraged to incorporate these into their own customer portals. Poseidon also provides editable Word templates for OEM-branded maintenance schedules and spare-parts lists, ensuring consistent messaging across global service organizations.
Warranty Considerations and Risk Mitigation
Poseidon Scientific stands behind its products with a 24-month limited warranty covering defects in materials and workmanship under normal operating conditions (15–50 °C, proper flange installation, and adherence to published pressure limits). Misuse—such as operating the VG-SM225 above 10⁻³ Torr without software protection or exposing the VG-SP205 to corrosive gases beyond its platinum-filament tolerance—voids coverage.
To protect both OEM and end-user, service teams should document installation date, operating environment, and any cleaning performed. Poseidon maintains full traceability by serial number and will expedite warranty replacements for verified failures. Proactive documentation also supports extended service contracts that many OEMs offer their customers, creating an additional revenue stream while reinforcing long-term partnerships.
Service Cost Optimization Through Design and Support
Poseidon’s self-developed gauges were engineered from the start for low total cost of ownership. The VG-SP205’s maintenance-free design eliminates electrode polishing labor entirely. The VG-SM225’s user-serviceable sensor head reduces replacement part cost to a fraction of competitive units that require full-gauge swaps. Combined with customizable RS232 protocols that enable predictive analytics, these features typically cut annual service costs by 35–50% versus legacy imported gauges.
OEMs further optimize by bundling gauges with annual service kits and training. Poseidon offers volume pricing tiers starting at 10 units, free protocol customization, and shared inventory programs that let service teams draw spares on consignment. The net result: higher customer satisfaction scores and measurable margin improvement on aftermarket service contracts.
Conclusion: Partner with Poseidon for Streamlined OEM Service Excellence
Well-planned maintenance programs transform vacuum gauges from potential pain points into competitive advantages. By leveraging the inherent reliability of the VG-SP205 Pirani Vacuum Transmitter and the field-serviceable design of the VG-SM225 Cold Cathode Vacuum Gauge, OEM service teams can deliver longer intervals, faster field repairs, lower inventory costs, and documented compliance—all while protecting end-user yield and uptime.
Ready to integrate Poseidon vacuum measurement into your service portfolio? Contact our team today for a no-obligation maintenance planning workshop, customized spare-parts recommendations, or a sample OEM service kit. Whether you serve scientific instrumentation, vacuum heat treatment, or high-speed packaging lines, Poseidon Scientific is the partner that helps your service organization operate more efficiently and profitably.
Explore the full specifications of the VG-SP205 Pirani Vacuum Transmitter or the VG-SM225 Cold Cathode Vacuum Gauge and discover how easy field maintenance can be.
