Best Practices for Vacuum Gauge Venting Procedures

Safe Venting Steps: Protecting Your Vacuum System and Gauge Investment

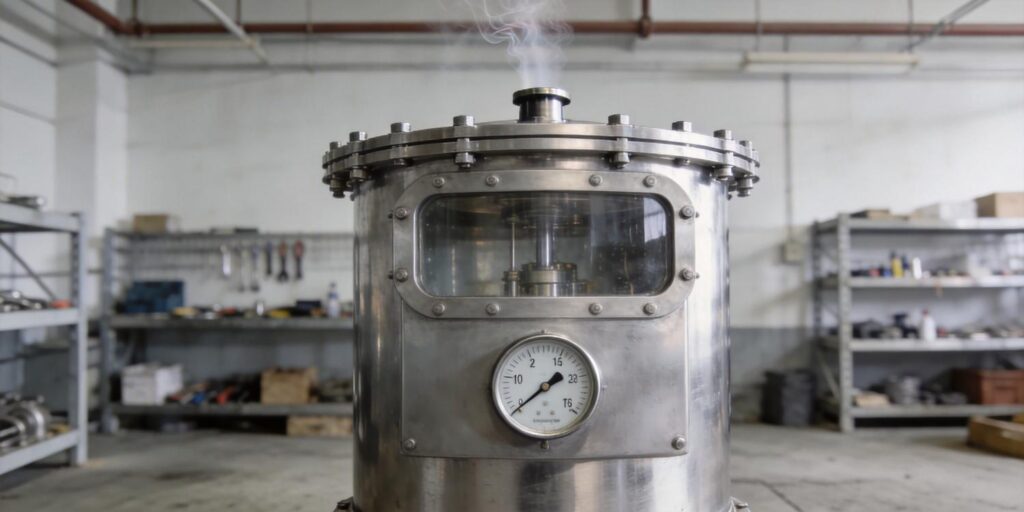

Venting a vacuum chamber is one of the most routine yet critical operations in any automated or laboratory vacuum system. Done incorrectly, it can introduce contamination, damage sensitive gauge sensors, or trigger false alarms that interrupt production cycles. Whether you operate mass spectrometers, pharmaceutical freeze dryers, or vacuum heat-treatment furnaces, following a standardized venting procedure extends gauge life and ensures repeatable process results.

The Poseidon VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge are engineered with built-in safeguards, but operator discipline remains the first line of defense. Both instruments use stainless-steel construction and KF16/KF25 flanges for leak-tight integration, yet each technology responds differently to sudden pressure rises.

Step-by-Step Safe Venting Procedure

1. Confirm system readiness. Verify that the chamber pressure is stable at base vacuum (typically below 10⁻³ Torr for cold-cathode operation). Check that the VG-SM225 high-voltage supply is disabled—its integrated protection circuit automatically shuts off above 10⁻³ Torr, but manual confirmation via the status LED prevents any residual discharge.
2. Isolate pumps and valves. Close the main roughing or turbo pump valve to avoid oil backstreaming or particulate ingestion. For load-lock systems, ensure the high-vacuum gate valve is fully seated.
3. Introduce dry inert gas. Use filtered, dry nitrogen (99.999 % purity) or clean dry air through a dedicated vent valve. Regulate flow to achieve a controlled rise of 50–100 Torr per second—never exceed 200 Torr/s to prevent shock waves that can dislodge particles inside the chamber or gauge.
4. Monitor gauge output in real time. The VG-SP205 Pirani responds in under 300 ms across its full range (atmosphere to 10⁻³ Torr), giving instant feedback. Watch the VG-SM225 only after pressure exceeds 10⁻³ Torr; its cold-cathode sensor is protected and will not ignite until the next pump-down.
5. Reach atmospheric pressure and hold. Allow 30–60 seconds at 760 Torr to equalize before opening doors or loading samples. This dwell prevents moisture condensation on cold surfaces.
6. Document the event. Log pressure rise time, gas type, and any deviation in your SCADA or batch record—essential for GMP compliance in lyophilization and ISO 9001 traceability in industrial applications.

These steps apply universally, yet the VG-SP205’s maintenance-free design makes it forgiving during frequent venting cycles common in semiconductor load-locks, while the VG-SM225’s removable sensor head shines in research systems where occasional cleaning is inevitable.

Protecting Sensors: Built-in Features and Operational Best Practices

Vacuum gauge sensors are precision components exposed to the full pressure swing from 10⁻⁷ Torr to atmosphere. The primary risks during venting are thermal shock to filaments, electrode arcing in cold-cathode designs, and sudden gas loads that can deposit contaminants.

Pirani Sensor Protection (VG-SP205)

The platinum filament in the VG-SP205 operates at constant temperature via a Wheatstone-bridge circuit. Because it is fully sealed and maintenance-free, the main protection strategy is limiting corrosive or reactive gases (e.g., fluorine, chlorine compounds) that could shorten filament life from the typical 3–5 years. Install an inline sintered-metal filter on the vent line rated for 0.5 µm particles. The transmitter’s temperature-compensation algorithm (15–50 °C) automatically corrects for ambient changes, eliminating drift that could otherwise trigger false over-pressure alarms.

Cold-Cathode Sensor Protection (VG-SM225)

The Penning-discharge design uses a 2000 V working voltage and 100-gauss neodymium magnet. Its software/hardware interlock is the strongest defense: the high-voltage supply auto-disables above 10⁻³ Torr, preventing destructive arcing or excessive ion bombardment during venting. The “工”-shaped electrode geometry and PEEK insulators further reduce field-emission hotspots. For maximum longevity, keep the gauge at least 10 cm from personnel or magnetic-sensitive equipment during operation—the compact size makes compliance easy.

Both gauges tolerate repeated venting without recalibration. Factory-established voltage-to-pressure mappings remain valid for the instrument lifetime when these protection protocols are followed. In contrast, legacy hot-cathode gauges often require filament pre-heating cycles that add 10–30 seconds of downtime—time the Poseidon pair eliminates entirely.

Avoiding Contamination: Practical Techniques for Long-Term Reliability

Contamination is the leading cause of vacuum-gauge drift and premature failure. During venting, airborne moisture, pump-oil vapors, and process residues can migrate into the sensor. The following practices, validated across Poseidon’s initial mass-spectrometer customers and freeze-drying installations, keep both gauges operating within ±15 % repeatability for years.

Gas Purity and Filtration

• Use only semiconductor-grade or medical-grade dry nitrogen supplied through a 0.003 µm coalescing filter and charcoal trap.
• Avoid compressed shop air unless it passes through a refrigerated dryer and HEPA filtration—water vapor partial pressure above 10⁻³ Torr accelerates filament oxidation in Pirani sensors and carbon buildup on cold-cathode electrodes.

Chamber and Gauge Design Considerations

Mount gauges vertically or at any angle (no orientation restriction) with the KF flange pointing slightly downward to promote natural drainage of condensates. For cold-cathode units, the removable sensor head allows quick visual inspection: a dark deposit on the “之”-shaped discharge plates signals the need for cleaning long before performance degrades. Pirani sensors remain sealed and require no inspection—simply replace every 3–5 years during scheduled preventive maintenance.

Operational Safeguards

• Never vent while the cold-cathode discharge is active; the auto-shutdown prevents this, but confirm via the flashing status LED.
• In corrosive-process environments, add a manual isolation valve between gauge and chamber so the gauge can remain under vacuum during chamber venting.
• After venting, perform a 5-minute nitrogen purge at 10 Torr before full pump-down—this flushes residual moisture without stressing the sensors.

These measures keep outgassing rates below 10⁻¹¹ Pa·m³/s and maintain the 1–2 year service life quoted for the VG-SM225 in clean environments (or 3–5 years for the VG-SP205 under identical conditions).

Restart Procedures: From Atmosphere Back to Base Vacuum

After safe venting and chamber access, the restart sequence ensures both gauges deliver accurate readings immediately upon reaching operating pressure.

Immediate Post-Vent Checks

1. Close and seal the chamber.
2. Start roughing pump and monitor the VG-SP205 Pirani output. Expect smooth transition from 760 Torr to 1 Torr in seconds; the 0–10 V analog signal or RS232 data stream provides continuous visibility.
3. Once below 10⁻³ Torr, enable the VG-SM225 high-voltage circuit. The cold-cathode may require 5 minutes (at 10⁻⁶ Torr) to 30 minutes (at 10⁻⁷ Torr) for full ignition—its status LED changes from flashing (warm-up) to steady green when discharge stabilizes.
4. Cross-check readings against a reference capacitance manometer if available; convergence within 10 % confirms system integrity.

Optional Maintenance for Cold Cathode

If the VG-SM225 shows delayed ignition or readings one decade low, perform electrode cleaning: remove the sensor head (vacuum seal remains intact), lightly abrade both cathode and anode plates with 500-grit or 200-grit sandpaper until metallic luster returns, and reinstall. The entire process takes under 10 minutes and restores original sensitivity without recalibration.

The VG-SP205 requires no action—its platinum filament and temperature-compensation circuitry ensure immediate, drift-free operation after every vent. Both transmitters support customizable RS232 protocols, allowing your PLC to automate the entire restart sequence and log “ready” status automatically.

CTA

Implementing standardized venting, protection, and restart procedures dramatically reduces unplanned downtime and calibration drift while protecting your investment in vacuum instrumentation. The Poseidon VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge are purpose-built for these exact demands—compact size, automatic high-vacuum protection, maintenance-friendly design, and fully customizable digital interfaces at a fraction of legacy import pricing.

Discover the VG-SP205 Pirani Vacuum Transmitter for fast, maintenance-free rough-vacuum monitoring and the VG-SM225 Cold Cathode Vacuum Gauge for reliable high-vacuum performance with easy electrode service.

Need a customized venting checklist for your specific application, protocol development for 5–10 unit integration, or a side-by-side performance comparison against INFICON or MKS gauges? Contact our applications engineering team today. We provide free system-audit worksheets, rapid-response technical support, and prototype units that help engineers and procurement specialists keep vacuum processes running safely, cleanly, and cost-effectively.
