Understanding the 4-20 mA Current Loop Principle
The 4-20 mA current loop remains the gold standard for industrial process instrumentation, including vacuum measurement, because it combines excellent noise immunity, long-distance signal transmission (up to 1,000 m), and inherent fault detection. In a properly configured loop, 4 mA represents the lower end of the measurement range (zero scale) and 20 mA represents the upper end (full scale). This “live zero” design distinguishes a valid signal from a broken wire or power failure, which drops the current to 0 mA.
Unlike voltage signals (0-10 V), current loops are largely unaffected by voltage drops along the cable or electromagnetic interference common in vacuum systems with high-voltage pumps and plasma sources. For vacuum gauges, the loop is typically powered by a 24 V DC supply at the receiving end (PLC or controller), with the transmitter modulating the current in proportion to pressure. Poseidon Scientific’s VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge provide native 0-10 V analog output with RS232 digital capability, but many legacy PLCs or DCS systems expect 4-20 mA. External loop converters or signal conditioners allow seamless integration while preserving the accuracy and repeatability engineered into Poseidon gauges.

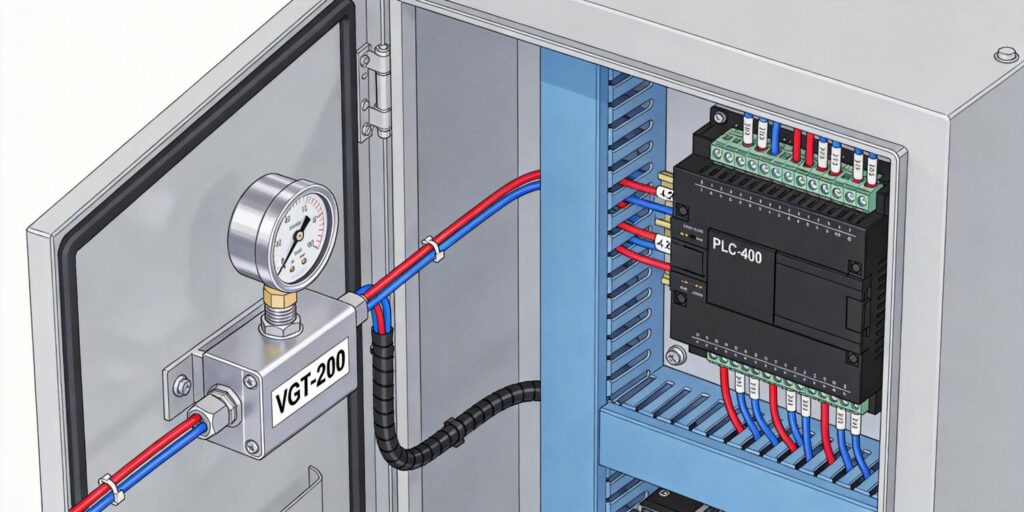

Wiring Configurations: Two-Wire vs. Three-Wire Transmitters
Two-wire transmitters are the most common in vacuum applications because they are loop-powered and require only a single pair of wires. The same pair carries both the 24 V DC supply and the 4-20 mA signal. Connect the positive leg from the PLC’s analog input to the transmitter’s positive terminal, and the return leg completes the loop. This configuration minimizes wiring cost and simplifies field installation on vacuum chambers using standard KF flanges.
Three-wire transmitters add a separate power supply return, offering slightly higher accuracy by isolating the signal ground. The transmitter receives +24 V and 0 V on two wires, while the third wire carries the 4-20 mA signal back to the PLC. Poseidon gauges, when paired with a two-wire or three-wire 4-20 mA converter module, follow the same wiring logic. Always verify the transmitter datasheet for maximum loop resistance (typically 750 Ω at 24 V) to ensure the PLC input and cable resistance do not exceed the limit. Incorrect wiring—such as reversing polarity—can damage the transmitter or produce a permanent 0 mA fault condition.
Scaling the Pressure Range in the PLC
Once the loop is wired, the PLC or controller must convert the 4-20 mA signal into engineering units (Torr, Pa, or mbar). The linear scaling formula is:
\[ P = P_{\min} + \frac{(I – 4)}{16} \times (P_{\max} – P_{\min}) \]
where \( I \) is the measured current in mA, \( P_{\min} \) is the lower-range value (e.g., atmosphere or 10⁻³ Torr), and \( P_{\max} \) is the upper-range value.
For a typical Poseidon VG-SP205 Pirani application covering atmosphere to 10⁻³ Torr, set the transmitter/converter so 4 mA = 760 Torr and 20 mA = 0.001 Torr. In the PLC function block, map the raw analog input (usually 0-32,767 counts) to the 4-20 mA range, then apply the scaling equation above. The VG-SM225 Cold Cathode follows the same logic in the 10⁻³ to 10⁻⁷ Torr band. Always use the gauge’s factory calibration certificate to confirm exact span values, as Poseidon ships each unit with an individual pressure-voltage/current curve. Custom protocol support allows digital scaling verification via RS232 before final 4-20 mA loop commissioning.
Fault Detection Below 4 mA
One of the greatest advantages of the 4-20 mA loop is built-in under-range diagnostics. Any reading below 3.8 mA (commonly set as the fault threshold) signals a broken wire, transmitter failure, or power loss. In vacuum drying ovens, coating chambers, or heat-treatment furnaces, this immediate detection prevents unsafe operation—such as heating a chamber that has lost vacuum or starting a plasma process under atmospheric pressure.
Configure the PLC to latch a “sensor fault” alarm and inhibit downstream equipment (pumps, heaters, or valves) whenever the loop drops below 3.5-3.8 mA for more than 500 ms. Poseidon gauges include complementary status codes via RS232 that can be cross-checked with the 4-20 mA loop for redundancy. For example, a Pirani filament-open condition or cold-cathode high-voltage shutdown will drive the loop to its fault state while simultaneously reporting the exact error via digital output, giving maintenance teams precise troubleshooting data.
Shielding and Grounding Best Practices
Electromagnetic noise from nearby RF plasma generators, high-voltage supplies, or variable-frequency drives can corrupt low-level signals. Always use twisted-pair shielded cable (18-22 AWG) rated for the full loop voltage. Connect the shield at one end only—typically at the PLC cabinet ground—to avoid ground loops. In vacuum systems with metallic chambers, route the cable away from the gauge body and use the gauge’s metal housing as a local ground reference.
For Poseidon installations, the RJ45 connector on both the VG-SP205 and VG-SM225 provides a clean interface to the converter module. Ground the converter chassis to the same reference as the PLC to maintain signal integrity. In high-noise environments, add ferrite cores on the cable near both ends and ensure the 24 V DC supply is filtered. These simple steps typically reduce noise-induced drift to less than 0.1 % of span, preserving the ±0.5 % repeatability inherent in Poseidon’s temperature-compensated designs.
Example Calculation: Scaling a Vacuum Gauge Loop
Consider a VG-SM225 Cold Cathode Gauge configured for 10⁻³ Torr to 10⁻⁷ Torr. Using an external two-wire 4-20 mA converter:
- 4 mA = 10⁻³ Torr (0.001 Torr)
- 20 mA = 10⁻⁷ Torr (0.0000001 Torr)
If the PLC reads 12 mA, the pressure is calculated as:
\[ P = 0.001 + \frac{(12 – 4)}{16} \times (0.001 – 0.0000001) = 0.001 + 0.5 \times 0.0009999 \approx 0.000500 Torr \]
This value (5 × 10⁻⁴ Torr) can then trigger interlocks or PID adjustments. The same arithmetic applies to the VG-SP205 Pirani across its wider range. Poseidon’s engineering team can pre-configure converter modules with exact scaling tables matched to each gauge’s serial-numbered calibration curve, eliminating manual entry errors during commissioning.
Commissioning Checklist for Reliable 4-20 mA Vacuum Gauge Loops
- Verify loop power supply is 24 V DC ±10 % and capable of driving total resistance (cable + PLC input + transmitter) below 750 Ω.
- Confirm polarity at both transmitter and PLC ends; reverse polarity will produce a permanent 0 mA reading.
- Perform a bench test: apply known pressures (atmosphere, 1 Torr, 10⁻⁴ Torr) and confirm output tracks 4-20 mA within ±0.5 %.
- Scale the PLC analog channel using the exact \( P_{\min} \) and \( P_{\max} \) from the gauge certificate.
- Set under-range alarm at ≤3.8 mA and test by disconnecting one wire.
- Verify shield grounding is single-point and noise is below 0.1 % of span under full system operation (pumps and heaters running).
- Log both 4-20 mA and RS232 digital values simultaneously for the first 24 hours to confirm agreement.
- Update the maintenance schedule with loop-resistance checks every 6 months.
Following this checklist typically achieves first-time success and full system validation within a single shift.
Conclusion: Reliable 4-20 mA Integration Starts with the Right Vacuum Gauge Foundation
Correct 4-20 mA configuration transforms vacuum measurement from a potential weak link into a robust, fault-tolerant component of the control system. Whether you are retrofitting legacy drying ovens, coating machines, or heat-treatment furnaces, the principles of loop wiring, scaling, fault detection, and proper shielding ensure stable, repeatable pressure data across the full process range.
Poseidon Scientific’s VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge deliver the underlying accuracy and digital transparency that make 4-20 mA integration straightforward when paired with industry-standard converters. Their compact design, field-serviceable architecture, and customizable RS232 output complement any 4-20 mA loop, giving engineers and maintenance teams the best of both worlds: modern digital insight and proven analog reliability.
Need a complete wiring diagram, converter recommendation, or custom scaling table matched to your exact pressure range and PLC brand? Contact Poseidon Scientific today for a no-obligation 4-20 mA integration review. Our team—led by the engineers who designed the VG-SP205 and VG-SM225—will provide tailored drawings, sample code, and commissioning support to get your vacuum system online quickly and correctly.
Explore the full specifications of the VG-SP205 Pirani Vacuum Transmitter or the VG-SM225 Cold Cathode Vacuum Gauge and discover how easy it is to add reliable vacuum measurement to your 4-20 mA control architecture.
