On-Site Validation Necessity
Vacuum gauge accuracy directly affects process control, yield, and safety in critical applications such as semiconductor manufacturing, thin-film coating, vacuum distillation, and casting equipment. Over time, gauges can drift due to contamination, thermal cycling, electrode wear, or environmental exposure. While factory calibration provides the initial benchmark, on-site validation confirms that the instrument continues to deliver reliable data under real operating conditions without the downtime and cost of returning units for recalibration.
For engineers and maintenance teams responsible for production uptime, periodic on-site checks are essential to detect subtle shifts before they impact process outcomes. Poseidon Scientific’s VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge are designed with field-friendly features that simplify validation. Their RS232 digital output, diagnostic status codes, and modular sensor heads enable quick, repeatable checks that align with ISO 17025 and semiconductor fab requirements. This article provides a practical, step-by-step guide to on-site validation, ensuring your vacuum measurements remain traceable and production-ready.
Reference Gauge Comparison Method

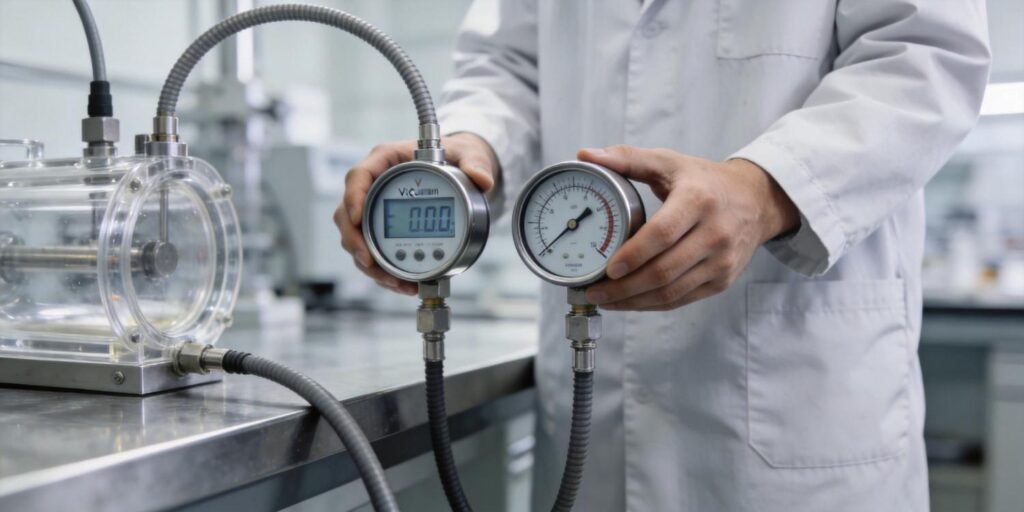

The most direct and widely accepted on-site validation method is direct comparison against a certified reference gauge. Select a calibrated transfer standard—typically a capacitance diaphragm gauge or spinning rotor gauge traceable to national standards—installed on the same chamber via a short, high-conductance tee or cross fitting to minimize flow errors.
Procedure:
- Evacuate the chamber to a stable test pressure within the gauge’s primary operating range.
- Simultaneously record readings from both the Poseidon gauge (via RS232 or 0–10 V analog) and the reference gauge at 30-second intervals for 5–10 minutes.
- Calculate the difference at each point: ΔP = PPoseidon – Preference.
- Repeat at three pressures spanning the operating range (e.g., 10 Torr, 10-2 Torr, and 10-5 Torr).
The VG-SP205 Pirani is ideal for mid-vacuum comparisons (atmosphere to 10-3 Torr), while the VG-SM225 Cold Cathode excels in high-vacuum verification (10-3 to 10-7 Torr). Their compact size allows easy mounting alongside reference gauges without major system modifications.
Zero and Span Verification
Zero and span checks provide a fast, low-cost first-pass validation without requiring a full reference gauge.
Zero Verification (Atmospheric Check): With the chamber vented to atmosphere, both gauges should read approximately 760 Torr (or 1013 mbar). The VG-SP205 Pirani output will be near the upper end of its 0–10 V scale; any deviation >5 % indicates possible filament contamination or electronics drift. The VG-SM225 should remain disabled (red lamp or status code) above 10-3 Torr per its built-in interlock.
Span Verification (High-Vacuum Check): Pump the system to its lowest achievable pressure (ideally <10-6 Torr) using a calibrated turbo or cryo pump. The VG-SM225 ion current should stabilize at a low, repeatable value consistent with historical baselines. The VG-SP205 will read near its lower limit; deviations here often signal temperature compensation issues.
Perform these checks monthly or after 500 operating hours. Poseidon gauges transmit zero/span status via RS232, allowing automated logging and pass/fail flagging in PLC systems.
Cross-Check During Pump Down
Dynamic validation during a standard pump-down cycle reveals performance under actual operating conditions. Log both gauges simultaneously and compare the resulting curve against the expected profile (rapid roughing, transition knee at ~10-1 Torr, then high-vacuum stabilization).
Use the VG-SP205 to monitor the roughing and transition phases. Its sub-second response and platinum filament provide clean data for confirming pump performance and detecting early anomalies. Once below 10-3 Torr, switch primary monitoring to the VG-SM225; its Penning discharge should show a smooth, monotonic decrease without discontinuities. Any unexplained plateau or sudden jump indicates potential contamination or a virtual leak that static checks might miss.
Cross-checking the two instruments at the 10-3 Torr handover point serves as an internal consistency test. Discrepancies beyond ±10 % trigger immediate investigation, leveraging the gauges’ complementary ranges for full-spectrum validation.
Environmental Factor Compensation
Ambient temperature, gas composition, and mounting location influence gauge accuracy. The VG-SP205 incorporates dual hardware and algorithmic temperature compensation, maintaining performance across 15 °C–50 °C. During validation, record chamber wall and gauge housing temperatures; apply any residual offset using the instrument’s built-in correction factors or simple linear adjustment in the control software.
For the VG-SM225, magnetic field strength and electrode condition dominate. Verify the NdFeB magnet integrity (≈100 gauss) and clean electrodes if startup time exceeds 15 minutes at 10-6 Torr. Gas composition effects are minimal in air/nitrogen-dominated systems but can be quantified by comparing readings before and after introducing known process gases. Poseidon documentation includes correction tables for common vapors, ensuring validation accounts for real-world conditions.
Documentation and Reporting
Thorough records demonstrate compliance and support predictive maintenance. Use the RS232 output from both gauges to generate timestamped CSV logs containing pressure, temperature, status codes, and error flags. Capture at least three validation runs per gauge, including raw data, calculated deviations, and environmental conditions.
A typical validation report includes:
- Gauge serial number and installation date
- Test pressures and reference values
- Deviation percentages at zero, mid, and span points
- Pump-down curve overlay with baseline
- Environmental conditions and any applied corrections
- Pass/fail conclusion and next validation date
Store reports in your CMMS or MES system. Poseidon gauges’ diagnostic logs simplify this process, reducing manual transcription errors and enabling automated compliance reporting.
Acceptance Criteria
Clear acceptance criteria ensure objective validation decisions. Industry-accepted tolerances for production environments are:
| Parameter | VG-SP205 Pirani | VG-SM225 Cold Cathode |
|---|---|---|
| Zero (atmosphere) | ±5 % of 760 Torr | High-voltage disabled (status OK) |
| Mid-range (10-2 Torr) | ±10 % | ±10 % |
| Span (high vacuum) | N/A (outside range) | ±15 % or ±0.5 decade |
| Pump-down time to 10-3 Torr | Within 15 % of baseline | Within 15 % of baseline |
| Pressure rise rate (isolated) | <5×10-4 Torr/min | <5×10-4 Torr/min |
If any criterion fails, perform electrode cleaning (VG-SM225) or replace the unit (VG-SP205 filament open-circuit). Re-validate after corrective action. These limits align with typical semiconductor and coating process requirements while remaining achievable with Poseidon instruments.
CTA for Calibration Assistance
On-site validation is a straightforward yet powerful tool for maintaining vacuum gauge accuracy and protecting process integrity. The VG-SP205 Pirani Vacuum Transmitter and VG-SM225 Cold Cathode Vacuum Gauge are engineered for easy field verification, delivering the data transparency and diagnostic support that today’s demanding applications require.
Whether you need help establishing a site-specific validation protocol, interpreting logged data, or scheduling factory recalibration for critical assets, Poseidon Scientific’s applications team is ready to assist. Explore detailed specifications for the VG-SP205 and VG-SM225, or contact us today for a no-obligation calibration assistance consultation. Let us help you keep your vacuum measurements accurate, compliant, and production-ready.
